BPL ACURA V1

Model

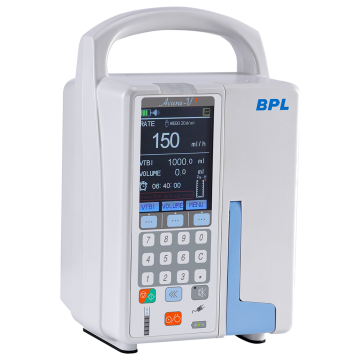

BPL Acura V1 Volumetric Infusion Pump

IV Sets

Standard IV sets of 20d/ml and 60d/ml, with diameter 3.4-4.5mm

Infusion Modes

Rate Mode, Time Mode, Drug/ Weight Mode, Drip Rate Mode(optional)

Volume Limit

l 1-9999 ml

Infusion Accuracy

≤± 5%

Bolus

 Default 600ml/h, Values adjustable within 10-1200ml/hr (20d/ml IV set)
Default 150ml/h ,Values adjustable within 10-150ml/hr (60d/ml IV set)

Flow Rate Range

0.1 ml/hr-1200ml/hr (20d/ml IV set)
0.1 ml/hr-150ml/hr (60d/ml IV set)

Battery Backup

4 hours at 25ml/hr after fully recharged

Power Supply

100V-240V AC?50Hz/60Hz

Battery Type

Internal rechargeable Ni-MH DC12V 2000mAh

Weight

1.8Kg Approx.

Dimensions

167mm(L) X 125mm(B) X 115mm(H) ( handgrip and clamp excluded)

Operational Conditions

Temperature: +5?C – +40?C

Relative Humidity

≤80%

Atmospheric Pressure

70KPa – 106Kpa

Storage & Transportation

Conditions – Temperature

-22?C – +55?C

Relative Humidity

10% – 90%

Atmospheric Pressure

70KPa – 106Kpa
